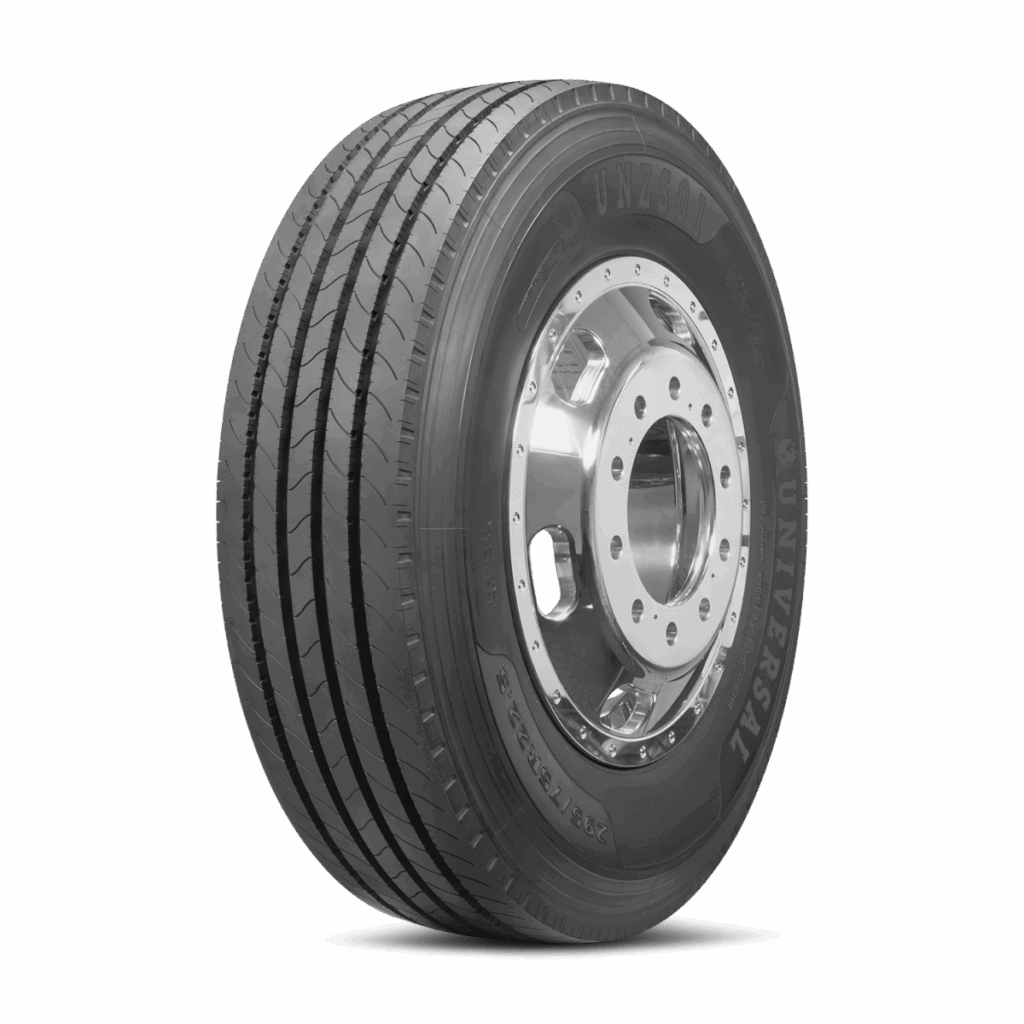

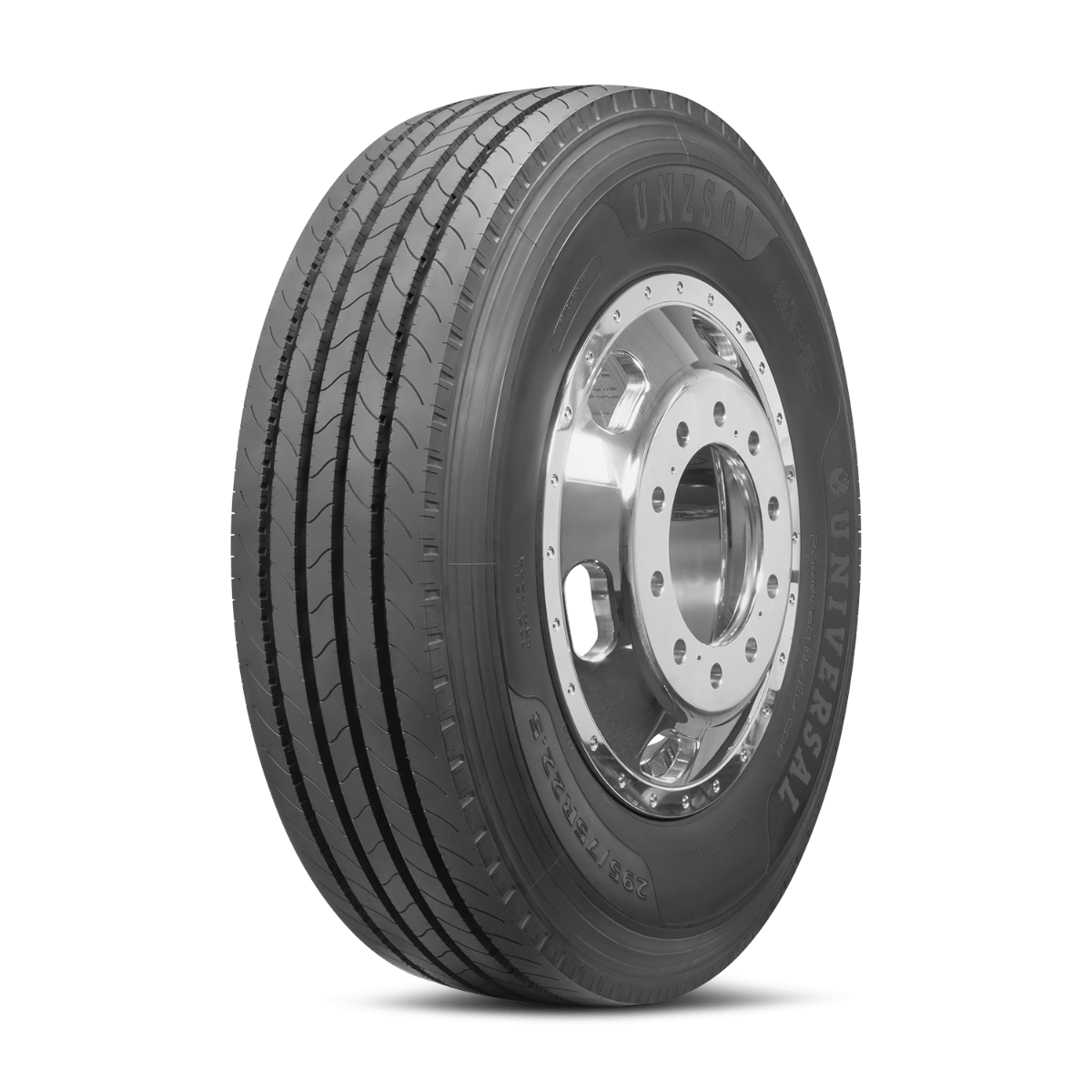

UNZS01 FEATURES
EASY ROTATION
Designed to rotate front to back for even wear, this feature extends the life of each tire on your truck.
LOW-ROLLING RESISTANCE
Low-rolling resistance construction minimizes fuel consumption during city driving.
EXCELLENT TRACTION
Excellent traction on wet roads increases safety and performance in all conditions.
DEEP TREAD DEPTH
A tread depth of 18/32nds or 16/32nds in a 17.5 rim, resists punctures and premature wear overall, for the best performance.
SPECIALIZED TREAD COMPOUND
The innovative tread compound works at the molecular level to reduce friction heat build-up, achieving performance balance between high wear and low rolling resistance.
SPECIAL NOTCH DESIGN
The special notch design on the outside groove walls improves traction on both dry and wet road conditions.
WAVE GROOVE DESIGN
The wave groove design effectively prevents stone entrapment to protect the body ply, which also improves pattern stiffness.
SHOULDER SIPES
Shoulder sipes relieve shoulder pressure, prevent irregular wear and prolong tread life.
RIB PATTERN DESIGN

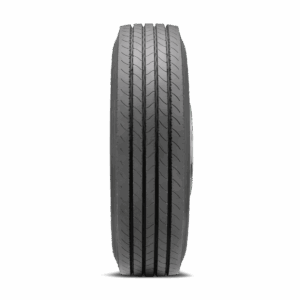

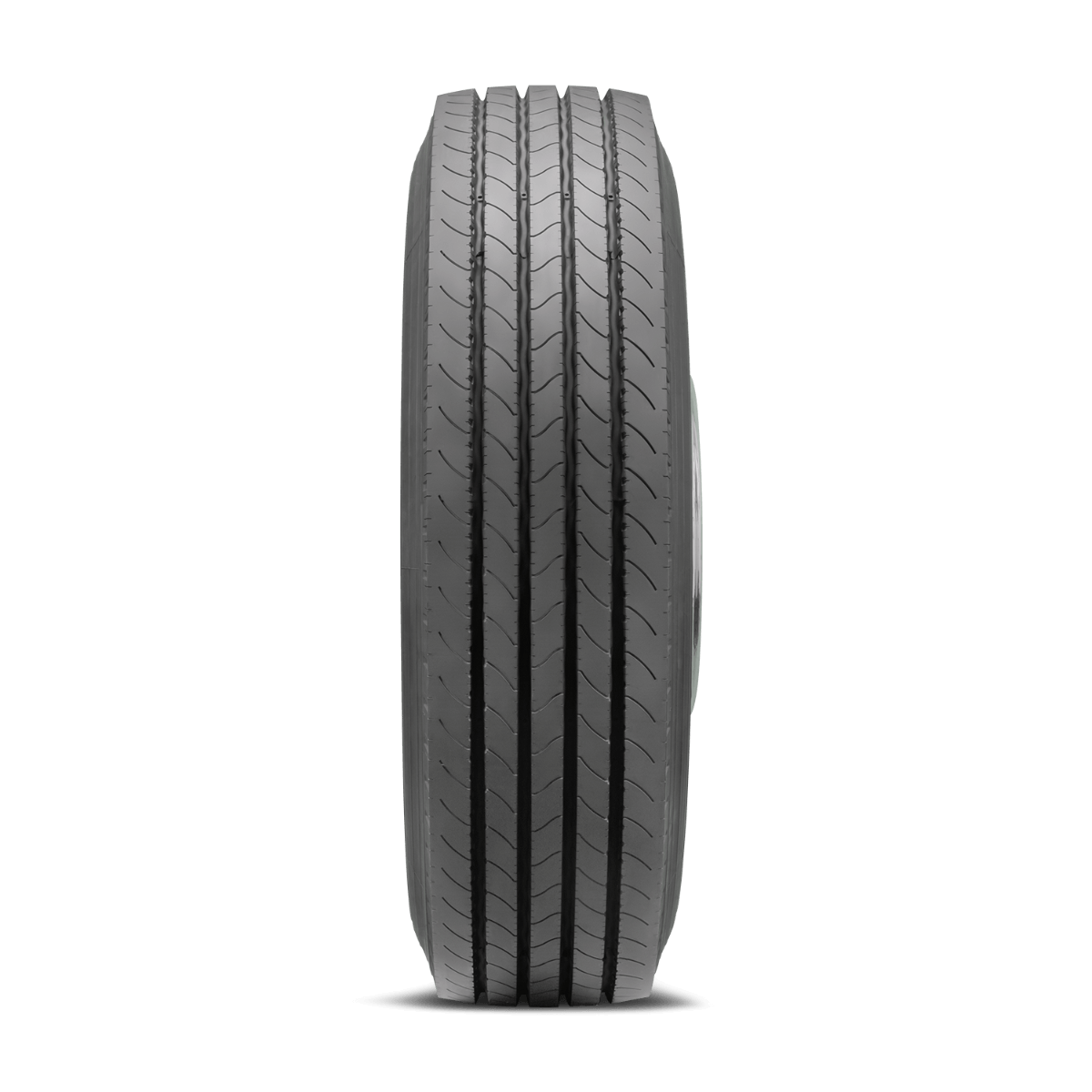

The 5-rib pattern design improves handling and mileage performance.
FOUR BELT REINFORCEMENT
Within the tire construction, four belts and a belt cushion effectively improve tire load maneuverability and endurance
RELATED VIDEOS
SIZES
| ARTICLE | SIZE | LOAD ID | PLY RATING | RIM WIDTH | TREAD DEPTH 32nds | TREAD WIDTH |
MAX LOAD SINGLE|DUAL |
WEIGHT |
|---|---|---|---|---|---|---|---|---|
| 841623131715 | 295/75R22.5 | G | 14G | 8.25-9.00 | 18 | 8.90 | 6175 / 5675 | 118.68 |
| 841623131722 | 11R22.5 | H | 16H | 7.50-8.25 | 18 | 8.66 | 6940 / 6395 | 119.14 |
| 841623131739 | 11R24.5 | H | 16H | 7.50-8.25 | 18 | 8.66 | 7160 / 6610 | 132.25 |
| 841623131753 | 285/75R24.5 | G | 14G | 7.50-8.25-9.00 | 18 | 8.66 | 6175 / 5675 | 119.60 |
| 841623131777 | 255/70R22.5 | H | 16H | 6.75-7.50-8.25 | 18 | 7.87 | 5510 / 5070 | 93.15 |
| 841623132316 | 215/75R17.5 | H | 16H | 6.00-6.75 | 16 | 7.09 | 4805 / 4540 | 61.41 |
| 841623131746 | 225/70R19.5 | G | 14G | 6.00-6.75-6.75 | 18 | 7.20 | 3970 / 3750 | 69.23 |
| 841623131760 | 245/70R19.5 | H | 16H | 6.75-7.50-7.50 | 18 | 7.87 | 4805 / 4540 | 79.35 |
