UNZX04 FEATURES

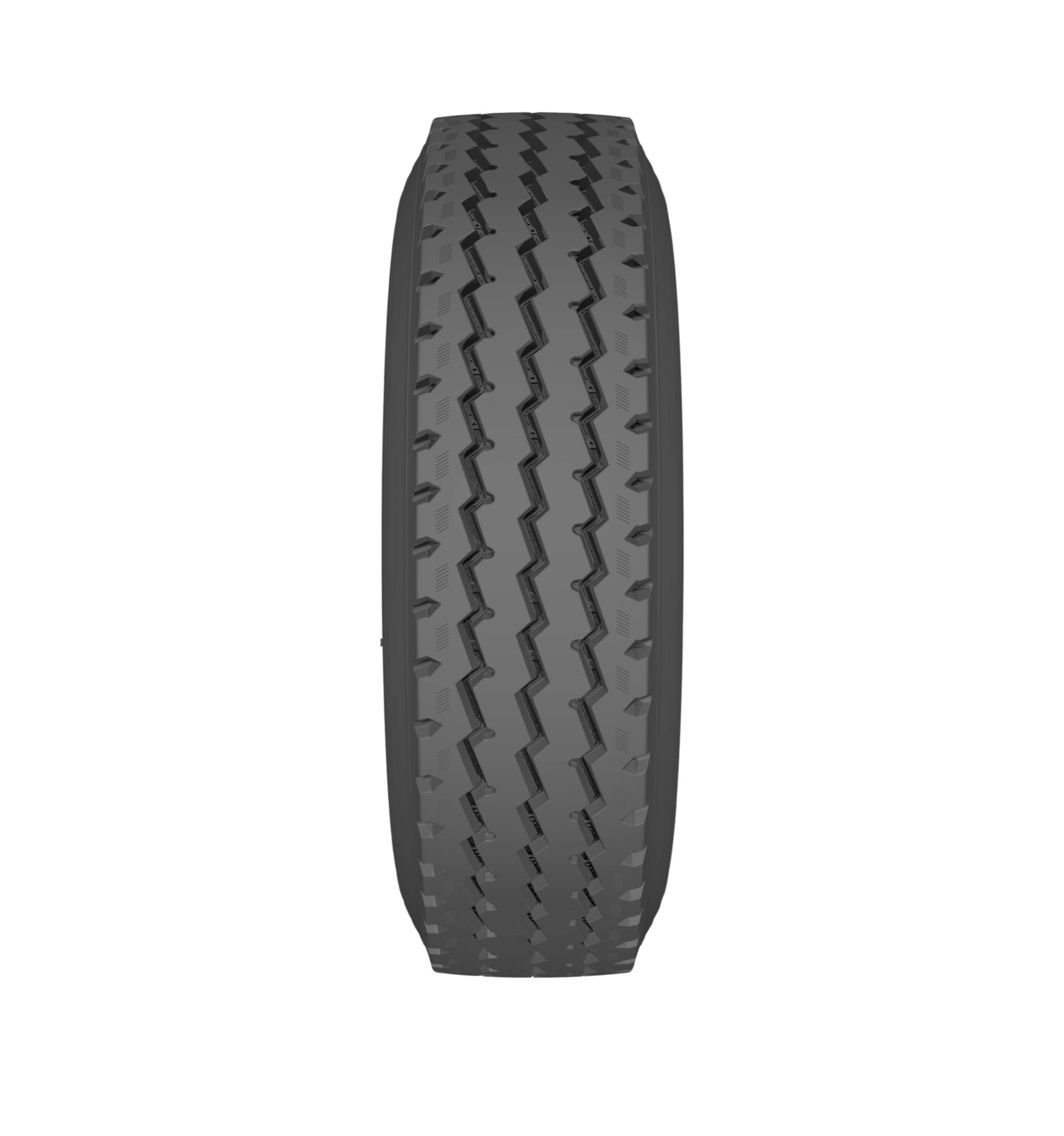

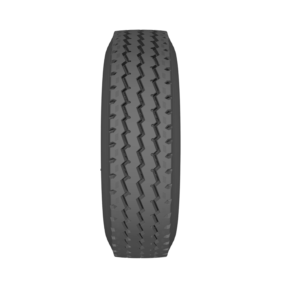

OPTIMIZED VOID RATIO
The UNZX04’s tread pattern design has an optimized void ratio and high surface area in the tire’s contact patch, improving traction in mud and providing long, even tread wear.
OUTSIDE SHOULDER NOTCHES
The shoulder ribs have outside grooves that improve even tread wear, reduce shoulder heat generation, and provide excellent wet and dry traction.
WIDE CLOSED SHOULDER
The solid wide shoulder ribs reduce rib deflection and provide optimum operating stability with long, even tread wear, resistance to cut/chip, and improved rolling resistance for improved fuel efficiency.
ZIG-ZAG GROOVES
The 3 deep circumferential Zig-Zag Grooves provide optimized traction for both wet and dry performance.
RELATED VIDEOS
SIZES
| Pattern Name | APPLCATION | POSITION | SIZE | PLY | LI | SS | Overall Dia.(MM) |
|---|---|---|---|---|---|---|---|
| UNZX04 | Mixed service | All Position | 13R22.5 | 20PR | 156/150 | K | 1124 |
| UNZX04 | Mixed service | All Position | 315/80R22.5 | 18PR | 156/150 | K | 1076 |
| UNZX04 | Mixed service | All Position | 325/95R24 | 22PR | 162/160 | K | 1228 |
